OSHA Floor Markings in Detroit: Where Automotive Production Meets Regulatory Enforcement

Metro Detroit runs on manufacturing. From the GM and Stellantis assembly operations in Warren and Sterling Heights to the hundreds of Tier 1 and Tier 2 suppliers lining the I-94 and I-75 corridors, this region puts more forklifts, AGVs, and heavy material handling equipment on concrete floors than nearly any other metro area in the country. That density of powered industrial truck traffic means pedestrian-forklift incidents are a persistent and serious safety risk — one that MIOSHA enforcement targets aggressively.

OSHA 29 CFR 1910.22 and 1910.178 require that facilities clearly delineate pedestrian pathways, equipment staging zones, and hazard areas. MIOSHA General Industry Safety Standard Part 2 mirrors and in some cases exceeds these federal requirements. But compliance paperwork means nothing if your markings are worn to invisibility six months after installation — which is exactly what happens with standard traffic paint under loaded forklift tires.

Epoxy Flooring Pro installs OSHA-compliant floor marking systems across Metro Detroit using high-build epoxy and fast-cure polyurea that outlast standard traffic paint by a factor of five or more. We work with your safety team to develop a layout that satisfies both federal OSHA and MIOSHA requirements, aligns with your operational traffic patterns, and stays visible for years — not months.

Why Floor Paint Fails in Detroit’s Industrial Facilities

The fundamental problem with standard floor traffic paint in Metro Detroit manufacturing and logistics facilities is film thickness. Standard traffic paint is applied at 2–4 mils DFT (dry film thickness). A loaded forklift — the Class IV and Class V trucks running continuously through auto parts plants and distribution hubs along I-94 — applies enormous point pressure to whatever surface it rolls over. At 2–4 mils, traffic paint has essentially no resistance to this abrasion. It wears away, often peeling and failing within weeks in high-traffic intersections.

Detroit’s climate compounds the problem. With 30+ freeze-thaw cycles per winter and road salt tracked in on truck tires, painted markings in loading dock zones and staging areas near overhead doors degrade even faster than in climate-controlled production areas.

The Thickness Advantage

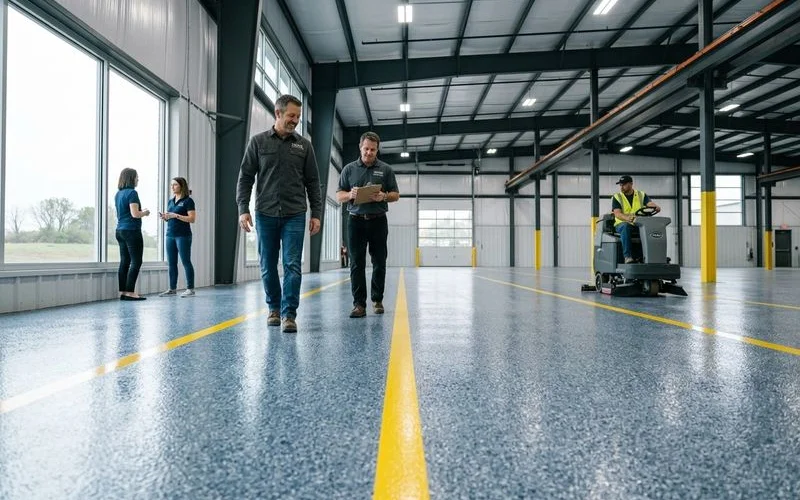

Our high-build epoxy marking systems are applied at 20–30 mils DFT after thorough surface preparation and primer application. This is not just a thicker version of the same material — it is a fundamentally different product category. High-build epoxy:

• Bonds chemically to the prepared concrete substrate
• Cures to a hard, cross-linked polymer matrix
• Resists abrasion from steel and polyurethane forklift tires
• Maintains edge definition through years of traffic
• Does not crack or peel under thermal cycling

For extreme traffic conditions — the kind found in major distribution centers along the Romulus logistics corridor near DTW and in high-volume stamping plants — we use polyurea marking materials that offer even higher hardness and impact resistance, with the added benefit of rapid cure times (traffic-ready in 1–2 hours) that minimize operational disruption during installation.

Surface Preparation is Critical for Markings Too

One of the most common reasons floor markings fail prematurely — even good-quality epoxy products — is inadequate surface preparation. Grinding the stripe path to clean, profiled concrete is as essential for markings as it is for full epoxy coating systems. We grind all stripe paths to remove existing paint, contamination, and surface laitance before applying any marking material. The additional cost of proper preparation is recovered many times over in marking longevity.

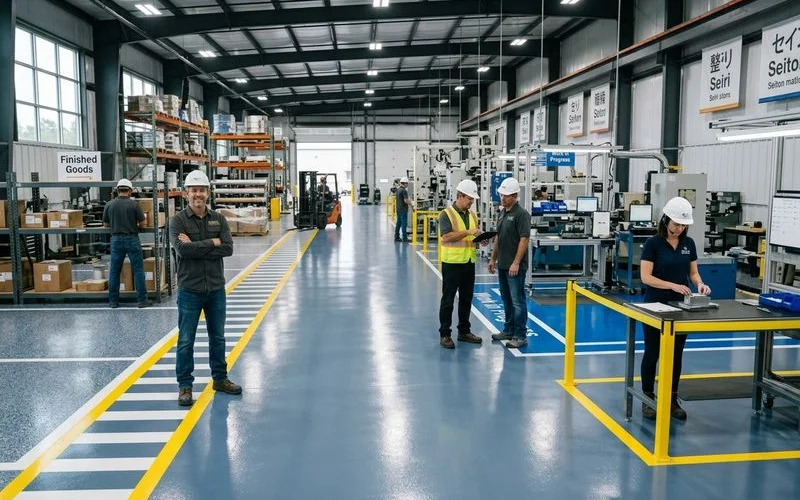

5S Floor Marking Systems for Detroit’s Lean Manufacturing Plants

Detroit’s automotive sector has driven lean manufacturing adoption for decades. Whether your facility follows Toyota Production System principles, the Business Operating System (BOS) framework, or a proprietary lean methodology, 5S floor markings are the physical foundation of the “Set in Order” principle — making correct organization the default by making it visually obvious.

From Stellantis suppliers in Sterling Heights to Ford Tier 1 operations in Dearborn and the growing EV manufacturing ecosystem around Factory ZERO on the former Poletown site, lean programs demand precision floor markings that hold up under real-world automotive production conditions.

5S Marking Elements We Install

Aisle and Pedestrian Lanes: Yellow high-build epoxy lanes at code-compliant widths (typically 48–72 inches for forklift aisles, 24–36 inches for pedestrian-only corridors) with clearly defined edges.

Workstation Boundaries: White outlines defining the footprint of each workstation, machine, or assembly area. These boundaries communicate clearly where equipment belongs and make it immediately visible when items have migrated out of position.

Material Staging Areas: Outlines and labels for WIP buffers, incoming material staging, finished goods staging, and first-in-first-out (FIFO) lane structures. Color coding distinguishes zone types.

Equipment Home Positions: Precise outlines for carts, mobile equipment, pallet jacks, and other items that need to return to a specific location. Often includes a text label stenciled or embedded in the marking system.

Shadow Board Locations: Floor outlines marking where shadow boards (tool organization boards) are positioned. These ensure shadow boards stay in their designated position and are replaced if temporarily moved.

Waste and Recycling Zones: Clearly marked areas for recycling bins, waste containers, and scrap collection. Often color-coded to distinguish waste streams.

AGV Travel Paths: With the increasing adoption of automated guided vehicles in Metro Detroit automotive plants, clearly marked AGV lanes with appropriate separation from pedestrian and manual forklift zones are becoming a standard requirement.

Working from Your 5S Documentation

If your organization has developed 5S layout drawings, we work directly from those documents to ensure the floor implementation matches your plan exactly. If you are initiating a 5S program and don’t yet have layout documentation, we can facilitate a layout planning session with your team to develop the floor marking specification before installation begins.

Non-Slip Coatings for Pedestrian Safety Zones

Slip and fall incidents are among the most common workplace injuries, and slippery industrial floors — particularly in areas adjacent to material handling zones — are inherently high-risk. In Detroit-area facilities where coolant overspray, hydraulic fluid leaks, and winter moisture tracked through overhead doors create wet floor conditions, non-slip coatings are not optional.

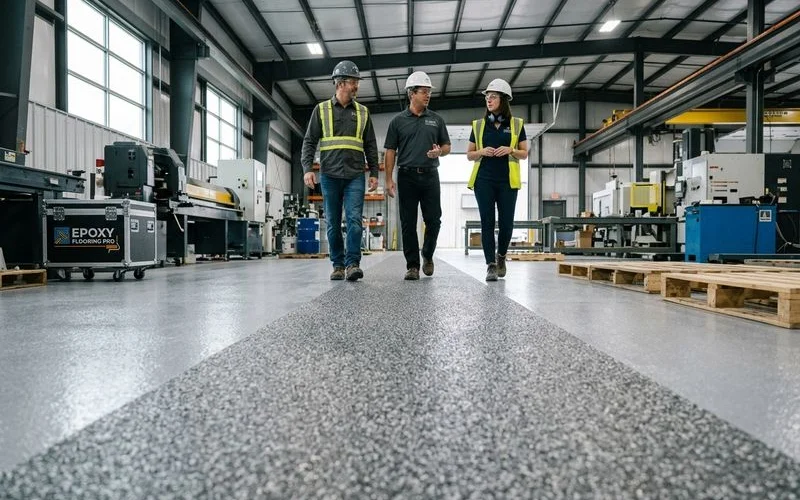

Our non-slip systems use aluminum oxide or silicon carbide aggregate broadcast into the wet marking material. The aggregate particle size and coverage rate determine the measured DCOF (Dynamic Coefficient of Friction). We target DCOF values appropriate to the specific application:

• General industrial pedestrian areas: DCOF ≥ 0.42 (ANSI A137.1 standard for level dry surfaces)
• Wet process areas: DCOF ≥ 0.60
• Ramps and inclines: DCOF ≥ 0.80

Aggregate-bearing marking systems maintain their slip resistance as long as the aggregate particles remain embedded in the matrix — typically years, not months.

Color Standards and ANSI/ASSP Compliance

While OSHA does not mandate a specific national color standard for industrial floor markings, ANSI/ASSP Z535 provides the industry-recognized framework that most safety professionals and auditors — including MIOSHA inspectors conducting walkthroughs of Detroit manufacturing facilities — use. Adherence to this standard ensures your markings communicate consistently with industry expectations and with workers who may transfer between Metro Detroit plants:

We design your complete marking system to this standard and provide a color legend in the documentation package for incorporation into your safety program materials and new employee orientation.

Distribution Center Striping Along the I-94 Corridor

Metro Detroit’s logistics sector — concentrated along the I-94 corridor from Romulus near DTW through Ypsilanti and westward — operates some of the highest-traffic warehouse floors in the Midwest. Multi-shift distribution centers running 40+ forklifts simultaneously demand marking systems that hold up under conditions no painted line can survive.

We have executed full-facility striping projects for distribution centers across this corridor, typically working during weekend shutdown windows or third-shift off-hours to avoid disrupting pick and pack operations. Our polyurea systems cure fast enough that completed zones can return to full forklift traffic within 4 hours — allowing us to work zone-by-zone through a 200,000+ square foot facility without any operational interruption.

Contact our safety striping team to schedule a facility walk-through and develop an OSHA-compliant marking layout for your Detroit-area operation.
