Certified ESD & Conductive Floor Systems in Detroit, MI

Why ESD Flooring Failures Cost Metro Detroit Manufacturers More Than Just Product

When an electrostatic discharge event damages a circuit board on a Troy SMT line, contaminates a pharmaceutical batch in a Sterling Heights cleanroom, or compromises an EV battery module at a Factory ZERO supplier facility, the flooring is rarely the first thing investigated. But in a high percentage of ESD-related incidents, the floor — or more precisely, the failure of the floor system to reliably dissipate static charge to ground — is a contributing factor.

Standard epoxy floors conduct static unpredictably. Without a properly installed grounding grid and a coating system with verified, stable resistance values, the floor may perform adequately on the day of installation and drift out of specification within 18 months as the conductive additives degrade, the grounding connections loosen, or the topcoat accumulates surface contamination — a common cause of failing floor coatings.

Metro Detroit’s manufacturing landscape is shifting. The rise of EV battery production centered around Factory ZERO, expanding defense electronics work connected to the Detroit Arsenal in Warren, and growing data center demand across Oakland County are all driving new requirements for certified ESD flooring — not just floors with “anti-static” in the product name, but systems engineered to hold their resistance specification reliably across years of production use.

Epoxy Flooring Pro designs, installs, and certifies ESD floor systems across Metro Detroit engineered to maintain compliance — not just at installation, but throughout the operational lifespan of the system.

Understanding ESD Floor System Requirements for Detroit’s Industries

Resistance Classification

The first decision in ESD floor specification is the required resistance range:

Conductive flooring (Rg < 1×10^6 Ω) is used in environments where rapid charge dissipation is critical — explosive handling areas at defense facilities, EV battery module assembly where high-voltage discharge poses both component and personnel safety risks, and semiconductor processes where charge accumulation of any level is unacceptable.

Static dissipative flooring (Rg 1×10^6 to 1×10^9 Ω) provides controlled, slower dissipation that prevents damaging discharge events while avoiding the rapid discharge that could itself damage sensitive components. This range is appropriate for most electronics manufacturing, PCB assembly, automotive electronics production, and pharmaceutical environments across Metro Detroit.

The appropriate range is determined by your ESD control program specification, the sensitivity of your devices (ESDS classification), and the guidance of your ESD coordinator. We work from your specification — we do not guess.

Why Grounding Grids Are Non-Negotiable

Many ESD floor failures trace directly to inadequate grounding rather than coating failure. An ESD coating without a properly designed and installed grounding grid is like a drain pipe without a sewer connection — the path to ground simply does not exist in a reliable, measurable way.

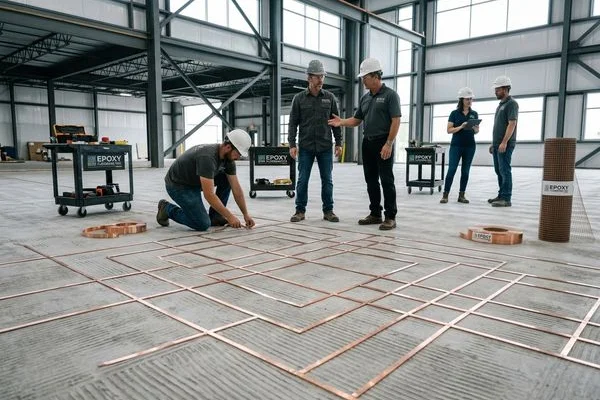

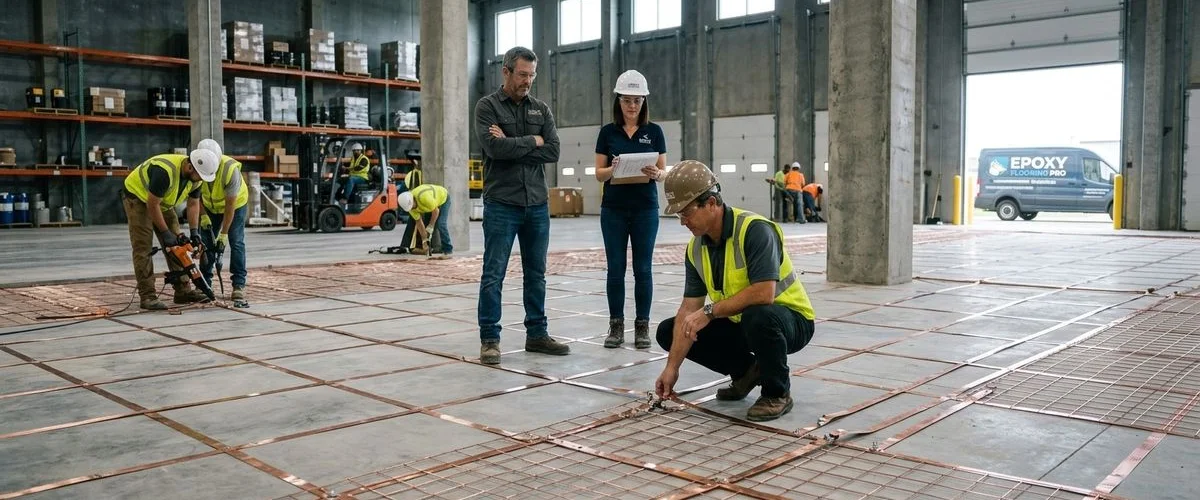

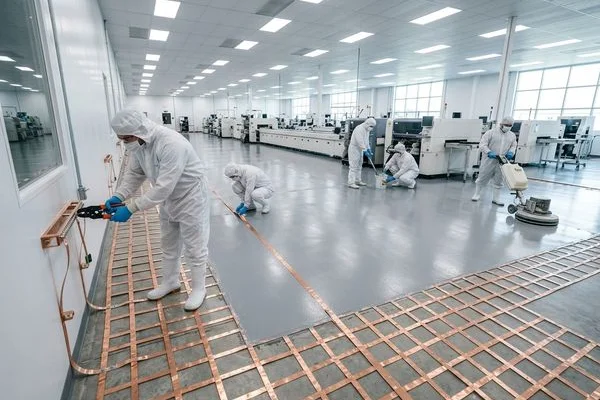

Our copper grounding grid installations use high-conductivity copper tape installed in a grid pattern beneath the coating system. The grid is connected to the facility electrical ground system, providing a true, measurable, reliable path to ground from every point on the floor surface. The resistance from any location on the floor to ground is tested and documented before project closeout.

The ESD Floor System Stack

Conductive Primer

The primer layer serves two functions: it fills the concrete surface profile and provides the initial conductive pathway connecting the topcoat to the grounding grid below. We use two-component epoxy conductive primers that cure to a stable, verified resistance range and provide the adhesion foundation for the system above.

ESD Intermediate Coat

For thicker systems or environments requiring chemical resistance, an ESD-rated intermediate coat builds mil thickness while maintaining conductivity continuity throughout the coating stack. This layer is particularly important in Metro Detroit’s EV battery manufacturing environments, where both electrolyte chemical exposure and static control requirements must be addressed simultaneously.

Static-Dissipative Topcoat

The topcoat is the surface layer — it takes the wear, the cleaning chemistry, and the physical contact from feet, carts, and equipment. Our static-dissipative topcoats are formulated to maintain their resistance values across the expected service life, resist the cleaning agents used in your facility, and provide the surface hardness needed for your traffic loads.

Certified Testing and Documentation

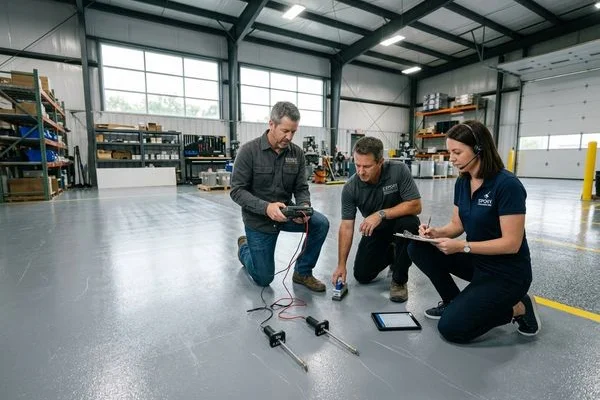

An ESD floor that cannot be verified is not a compliant ESD floor. Every installation we complete is tested per ANSI/ESD S7.1 using calibrated megohmmeter equipment. Testing is performed across a systematic grid pattern that covers the entire floor area, and all readings are documented in a formal test report that includes:

• Point-to-point resistance readings (Rp-p) at all test locations
• Resistance to groundable point readings (Rg) at all test locations
• Pass/fail determination against your specified resistance range
• Photographs of test setup and floor condition
• Project information, date, and tester credentials

This documentation integrates directly into your ANSI/ESD S20.20 ESD control program documentation set — whether your facility is audited by internal ESD coordinators, OEM quality teams, or defense program inspectors.

Applications Driving ESD Flooring Demand in Metro Detroit

EV Battery Manufacturing

The electrification of Detroit’s automotive industry is creating entirely new categories of ESD-sensitive manufacturing environments. Factory ZERO — GM’s EV assembly plant on the former Poletown site — and its expanding network of battery pack and module suppliers across Metro Detroit require conductive flooring in areas where lithium-ion cells and high-voltage battery packs are assembled, tested, and stored. The energy density of these components makes ESD control a safety requirement, not just a quality control measure.

Defense Electronics and the Detroit Arsenal

The Detroit Arsenal in Warren and connected defense electronics operations throughout Macomb and Oakland counties manufacture and assemble ESD-sensitive military electronics, avionics components, and communication systems under MIL-STD-1686 requirements. These facilities demand the tightest resistance specifications and the most rigorous testing documentation.

Troy-Auburn Hills Technology Corridor

The concentration of automotive electronics suppliers (ADAS, infotainment, powertrain controllers), semiconductor test and packaging operations, and data center construction along the Troy-Auburn Hills corridor has driven steady demand for certified ESD flooring. As vehicles incorporate more electronic content per platform, the supply chain producing those components needs flooring that protects multi-million dollar production runs from static damage.

Pharmaceutical and Cleanroom Environments

Metro Detroit’s pharmaceutical manufacturing and compounding operations maintain cleanroom-classified areas where static charge can attract particles, cause powder agglomeration, or create contamination events. Our ESD systems use low-VOC, low-outgassing formulations compatible with ISO-classified environments.

Data Centers

The growth of data center construction across Southeast Michigan — driven by proximity to major internet exchange points and abundant power infrastructure — has created demand for ESD flooring in equipment staging areas, server rooms, and network operations centers where static discharge could damage rack-mounted hardware.

Recertification Services for Existing Metro Detroit ESD Installations

ESD floors are not install-and-forget systems. Resistance values can drift over time due to wear, contamination accumulation, cleaning chemical residue, and grounding grid degradation. Most ESD control programs require annual retesting — some defense and semiconductor facilities test quarterly.

We offer recertification services across Metro Detroit, providing updated test documentation that integrates with your ongoing ESD audit program. When resistance values have drifted, we diagnose the root cause — which may be as simple as cleaning protocol changes or as complex as grounding grid failure — and recommend targeted remediation rather than unnecessary full replacement.

Contact Epoxy Flooring Pro for a static control flooring assessment at your Metro Detroit facility. We will specify the right system, install it correctly, and give you the documentation your ESD program requires.
